Automotive
From prototype brackets to bridge-production housings, built to your drawings.
MASA FabWorks manufactures custom automotive components across CNC machining, die casting, injection molding, sheet metal, and 3D printing. We produce tight-tolerance machined and cast parts in production-representative alloys and resins, with first-article inspection on every order. Work spans prototype and validation builds through low and mid-volume bridge production.
5
Processes
±0.025 mm / 0.001 in
Tolerance to
40+
Alloys & resins
1–10k+
Piece volumes
Engineering depth for automotive programs
Material grade drives the design
Structural brackets run in 6061-T6 or 7075-T6 for strength-to-weight, cast housings use A380 and ADC12 aluminum, and under-hood molded parts use glass-filled grades such as PA66-GF30 for heat and load.
Tolerances quoted as ranges
Machined features hold routine ±0.05 mm and precision ±0.01 to 0.02 mm. As-cast surfaces run looser, with critical faces CNC-finished to ±0.05 to 0.1 mm. Every value is geometry and material dependent.
Parts across every vehicle system
From powertrain and chassis brackets to electronics enclosures, connector housings, and interior trim, we cover mechanical, electrical, and cosmetic parts on a single purchase order.
Right process for the volume
CNC, 3D printing, and vacuum casting cover prototype and one-off parts. Die casting and injection molding are hard-tooled for bridge and low to mid volume.
Automotive parts, by process
Representative parts we manufacture for this industry. Every part is quoted to your drawings and materials.
CNC Machining
Subtractive machining from solid stock gives full geometric freedom, tight tolerances, and true production-material properties with no hard tooling, ideal for uprights, brackets, and manifolds.
Explore CNC Machining services

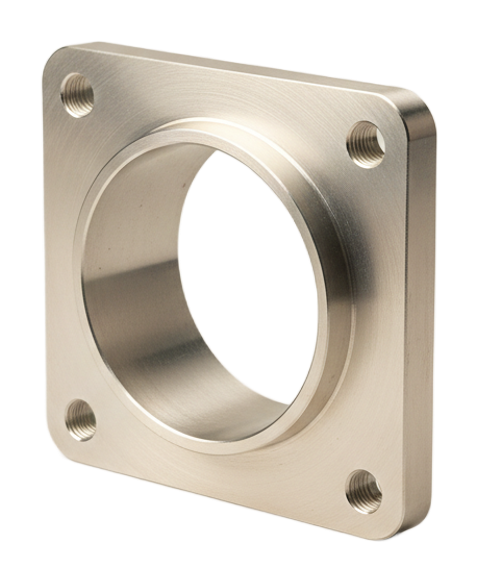

Intake manifold flange
CNC-machined 6061-T6 aluminum

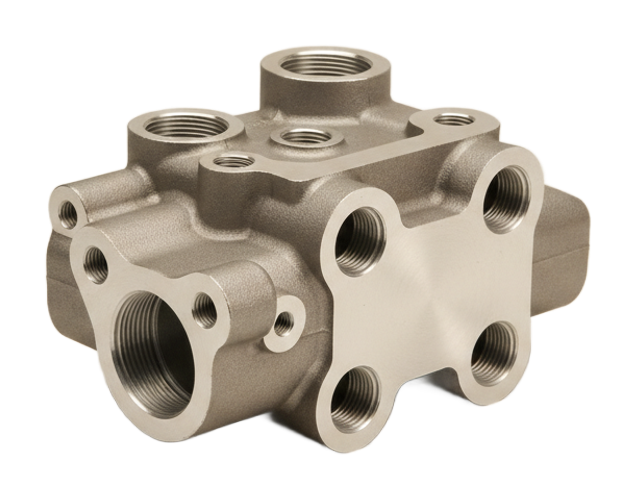

Coolant manifold
CNC-machined aluminum, ported
Die Casting
High-pressure die casting produces thin-wall, net-shape aluminum housings and brackets at high repeatability, with critical faces machined after casting.
Explore Die Casting services

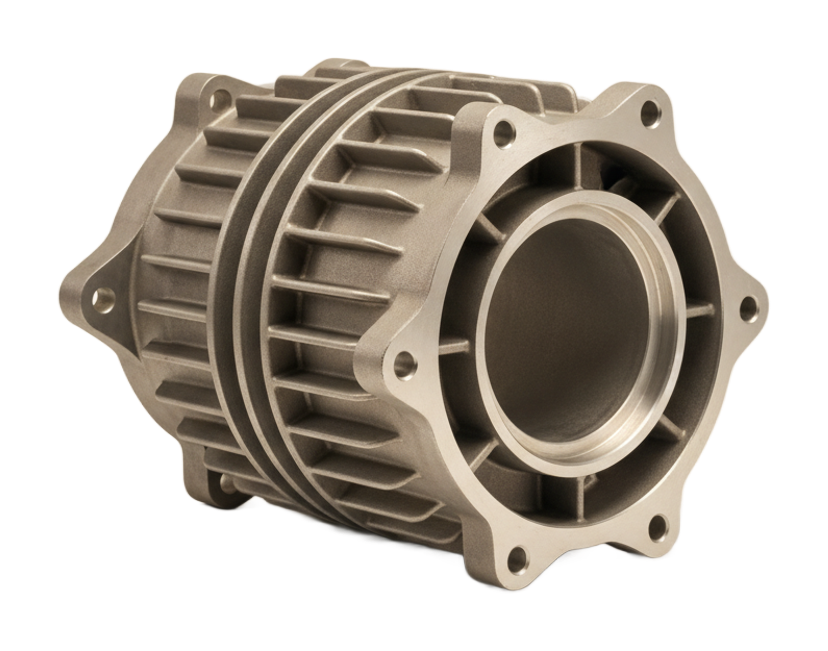

E-motor housing
Die-cast A380 aluminum, finned

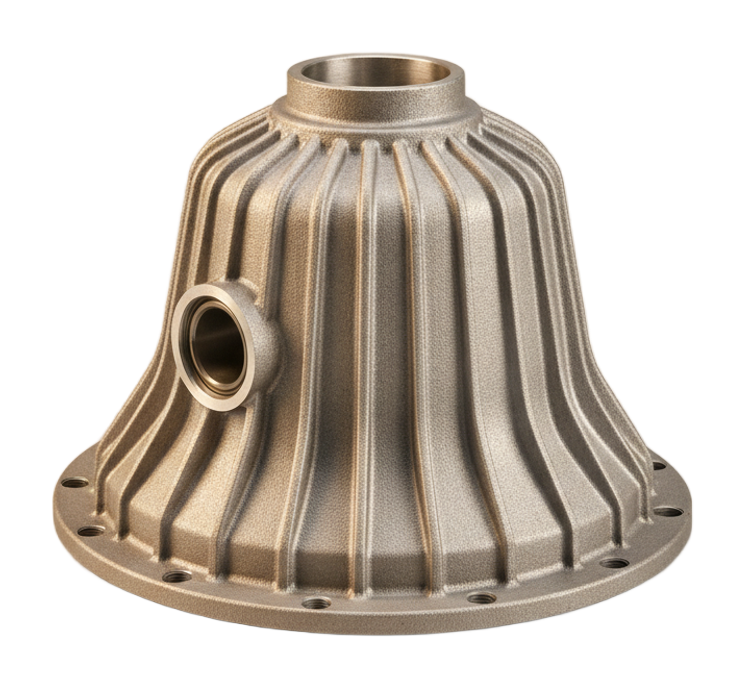

Transmission housing
Die-cast aluminum
Injection Molding
Molding amortizes tooling across hundreds to thousands of parts with fine features, textures, and snap-fits, from Class-A cosmetic trim to large under-hood housings.
Explore Injection Molding services

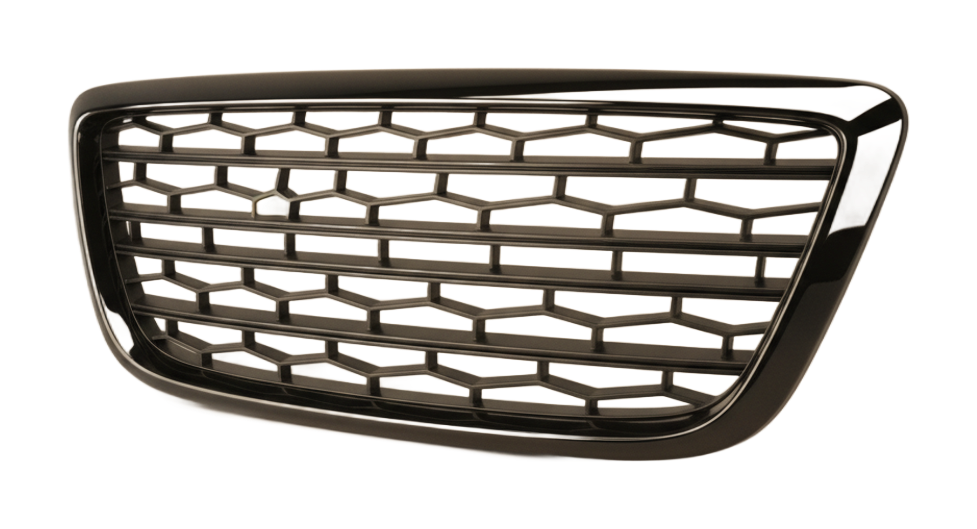

Radiator grille
Injection-molded textured plastic

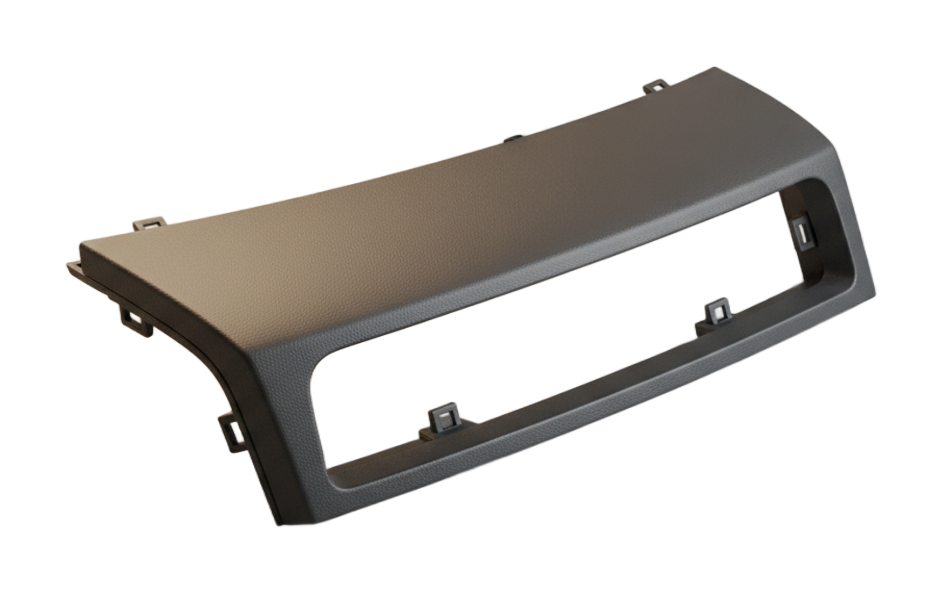

Interior vent bezel
Injection-molded, Class-A texture

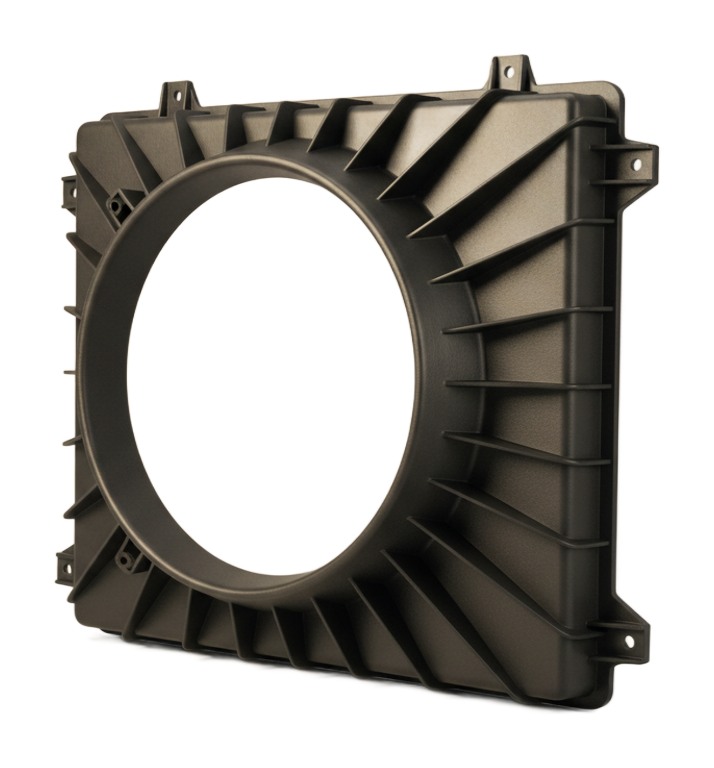

Cooling fan shroud
Injection-molded glass-filled polymer
Sheet Metal Fabrication
Laser cutting, press-brake bending, and welding give fast, low-tooling enclosures and heat shields with excellent strength-to-weight for electronics and thermal hardware.
Explore Sheet Metal Fabrication services

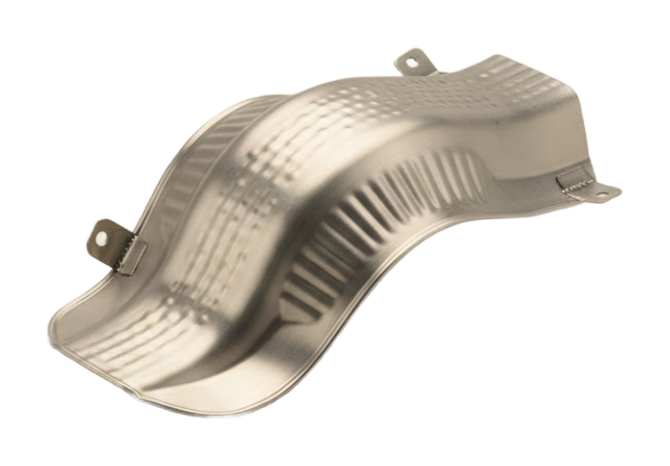

Exhaust heat shield
Formed stainless steel

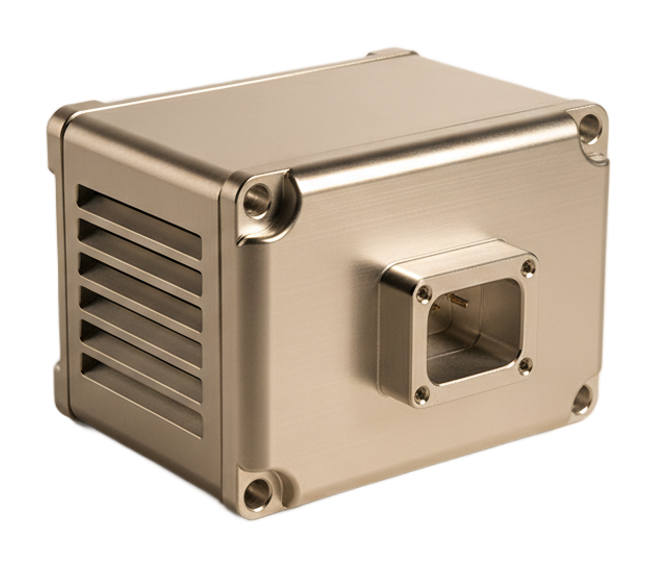

ECU enclosure
Folded aluminum, louvered
3D Printing
Additive needs no tooling and handles complex geometry fast, the default for ducting prototypes, shop-floor fixtures, and low-volume functional parts.
Explore 3D Printing services

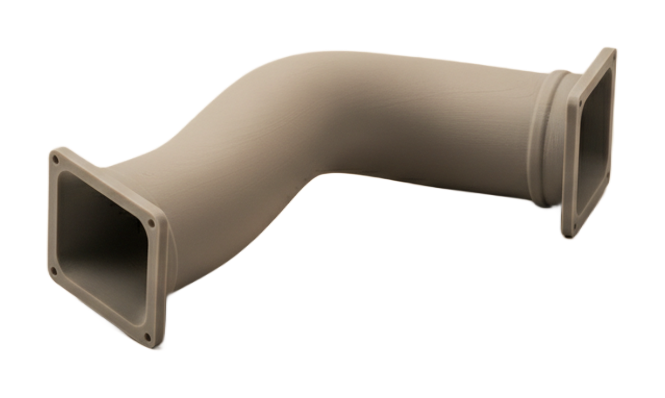

Air-intake duct
SLA resin prototype
Where we help most
Common material grades
Aluminum
- 6061-T6
- 7075-T6
- 5052-H32
- A380 / ADC12 cast
Steels
- 1018
- 4140
- Stainless 303 / 316
- Cold-rolled steel
Engineering plastics
- PA66-GF30
- PC/ABS
- POM
- PBT-GF
Additive
- SLS PA12
- FDM nylon
- PA11
Standards & responsibility
Automotive quality systems such as IATF 16949 are held by the manufacturing facilities. FabWorks supplies custom components for your program; production-part approval and any safety qualification remain owned by your engineering team.
Related technical guides
Design-for-manufacturability guides and references most relevant to automotive parts.
Designing for Die Casting: A DFM Guide
Wall thickness, draft, fillets, ribs, bosses, parting lines, and tolerances for aluminum, zinc, and magnesium die castings, with the numbers we use.
Read the guideDesigning for Injection Molding: A DFM Guide
Wall thickness, draft, ribs and bosses, undercuts, gates, and tolerances for injection-molded parts, keyed to resin, with the numbers we use.
Read the guideMaterials Selection Reference: Alloys and Resins
The metal and plastic families we work in, the properties that separate them, and how to narrow from a family to a grade that both performs and manufactures cleanly.
Read the guideGD&T, Tolerances, and Fits: A Primer
General tolerances, the GD&T controls and feature control frame, material condition and bonus tolerance, and how to choose an ISO 286 fit, with achievable bands by process.
Read the guideMaterial Certifications and Compliance
RoHS, REACH, biocompatibility, material certificates, and the quality systems behind them: what you specify, what the facilities hold, and the documentation you receive.
Read the guideStart a automotive project
Upload your files. We measure your model against per-process, per-material rules and send a DFM review before you commit to a quote.
