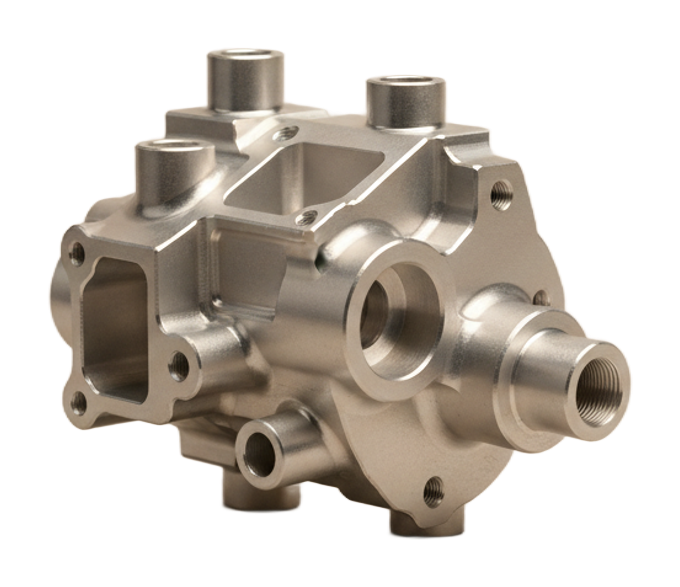

CNC Machining
Precision-machined parts from prototype to production. Tight tolerances.
MASA FabWorks delivers CNC-machined components across a wide range of metals and engineering plastics. Our automated DFM review and manufacturing location optimization ensure you get the most cost-effective path for your part before a quote is ever issued.
3 & 5-Axis
Axis Capability
±0.13 mm / 0.005 in
Standard Tolerance
50+
Materials
10+
Surface Finishes
CNC Machining Capabilities

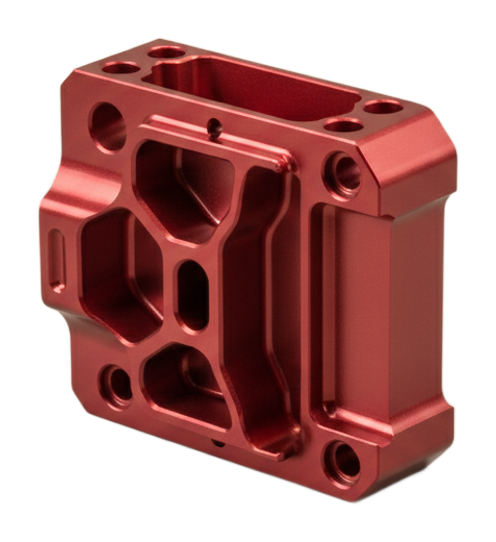

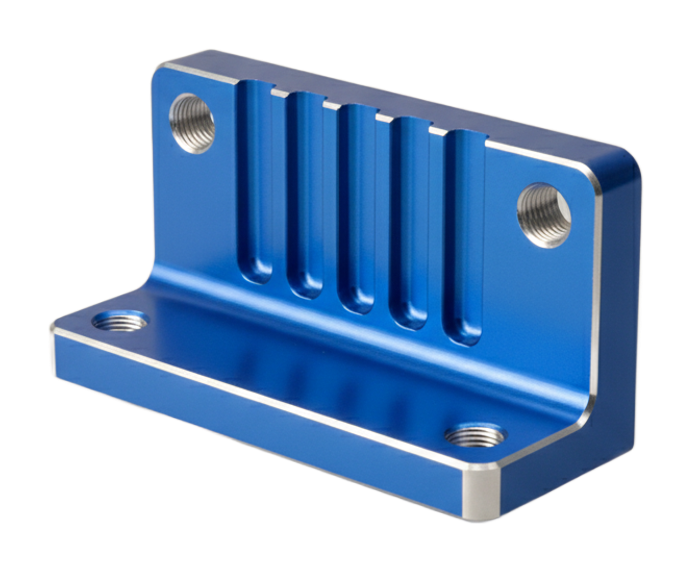

CNC Milling
3-axis and 5-axis milling for prismatic and complex surface geometries. Suited for pockets, contours, slots, and freeform surfaces across all machinable materials.

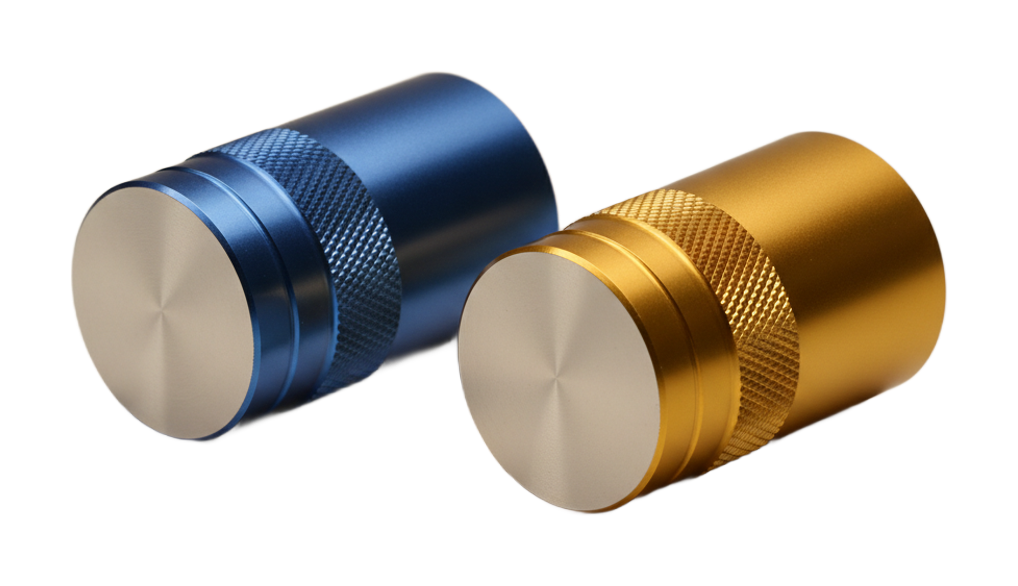

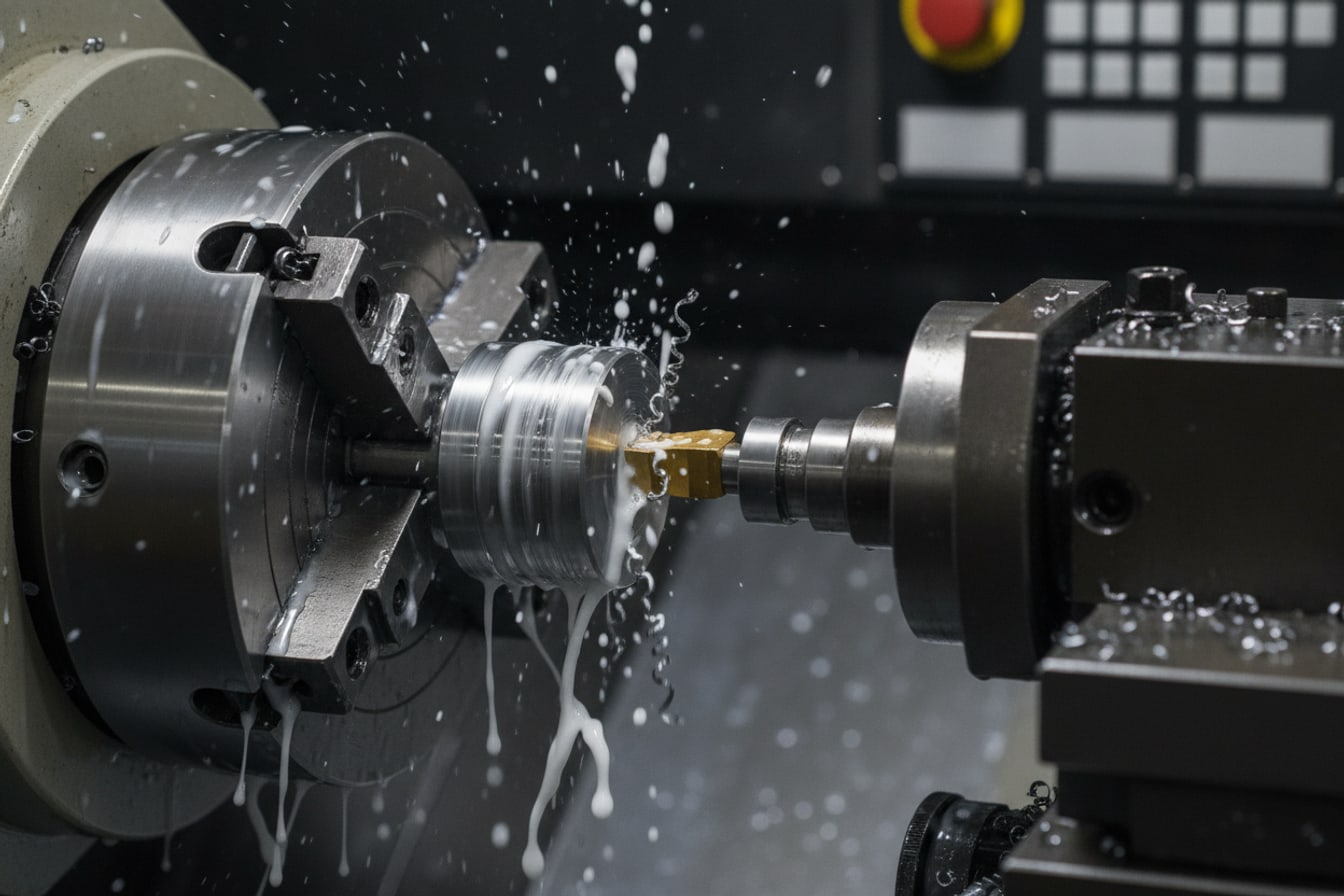

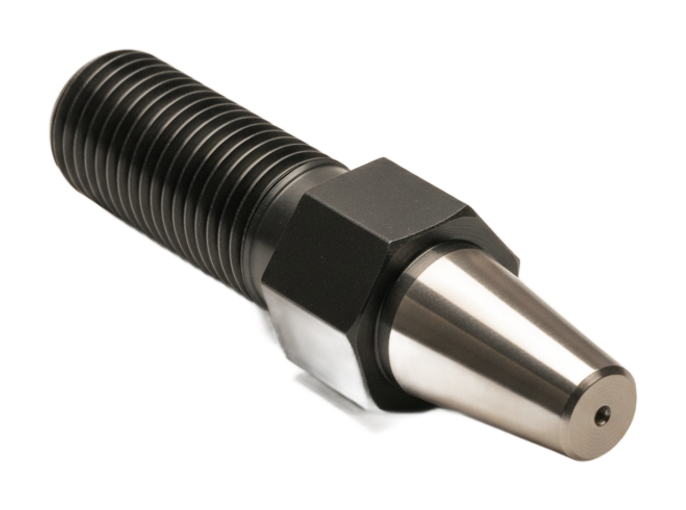

CNC Turning
Precision turning of cylindrical, conical, and threaded features. Live tooling capability enables milled features on turned parts in a single setup.

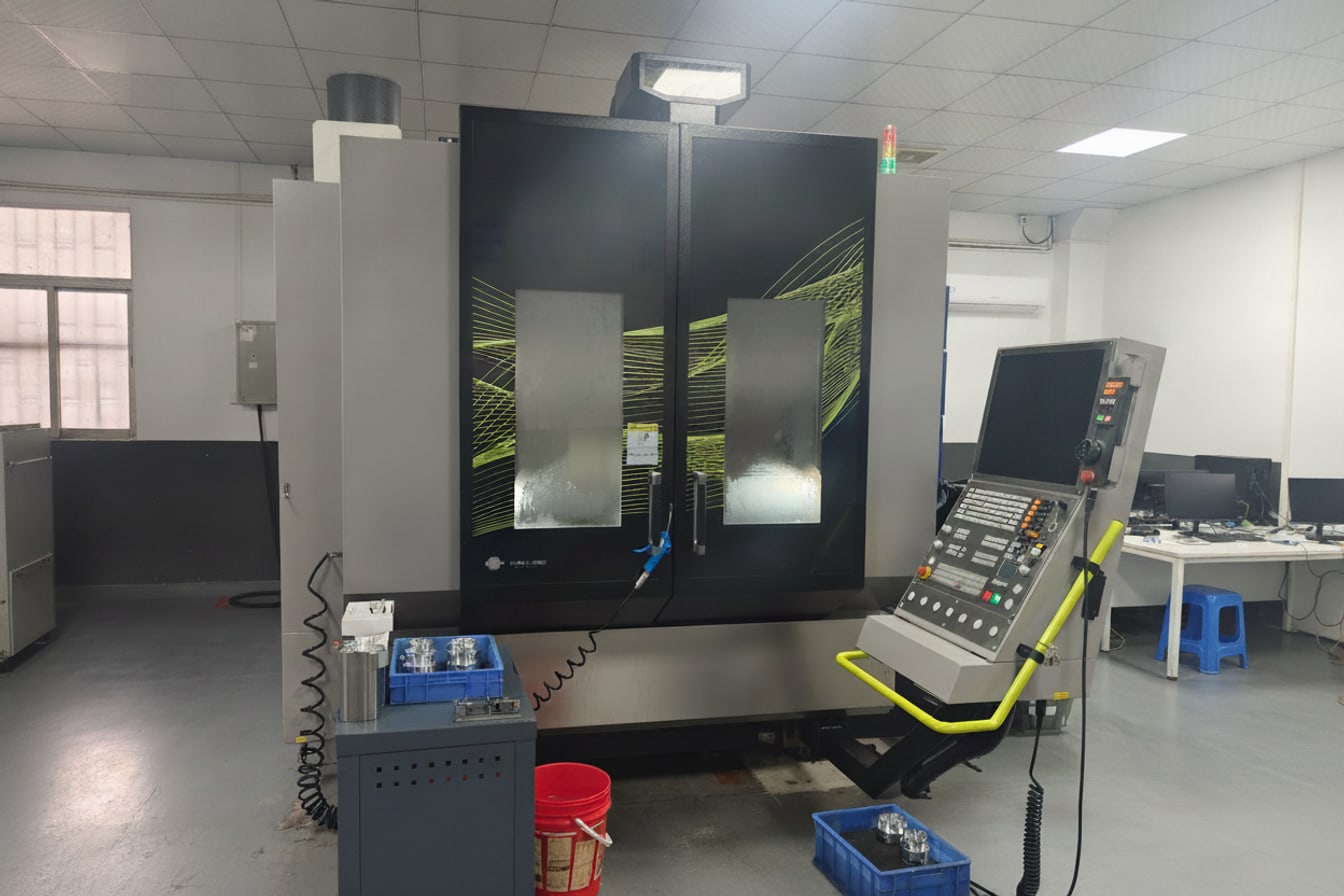

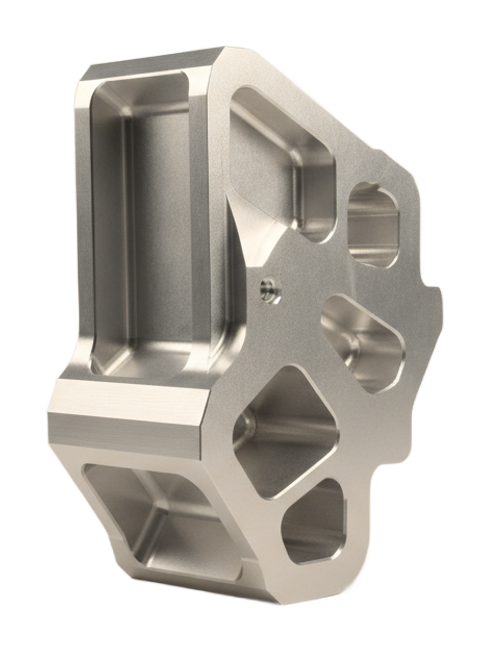

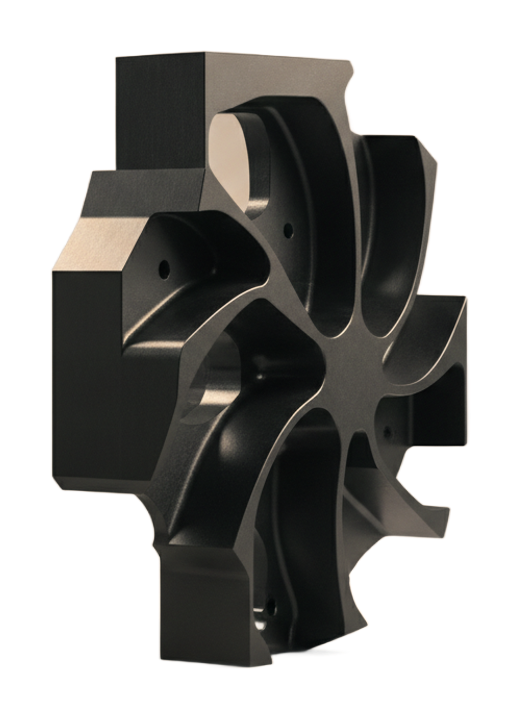

Multi-Axis Machining
4-axis and 5-axis simultaneous machining for complex components that require compound angles and undercuts without repositioning, from precision medical parts to intricate industrial housings.

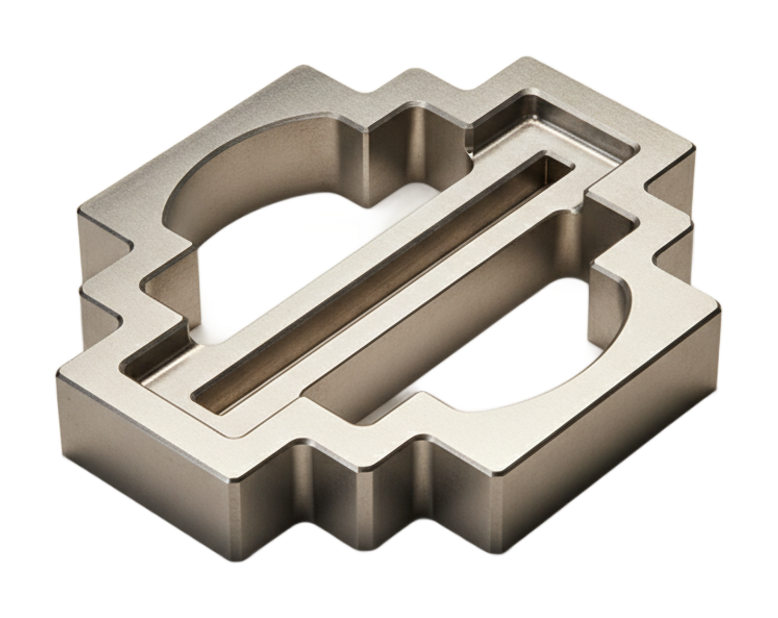

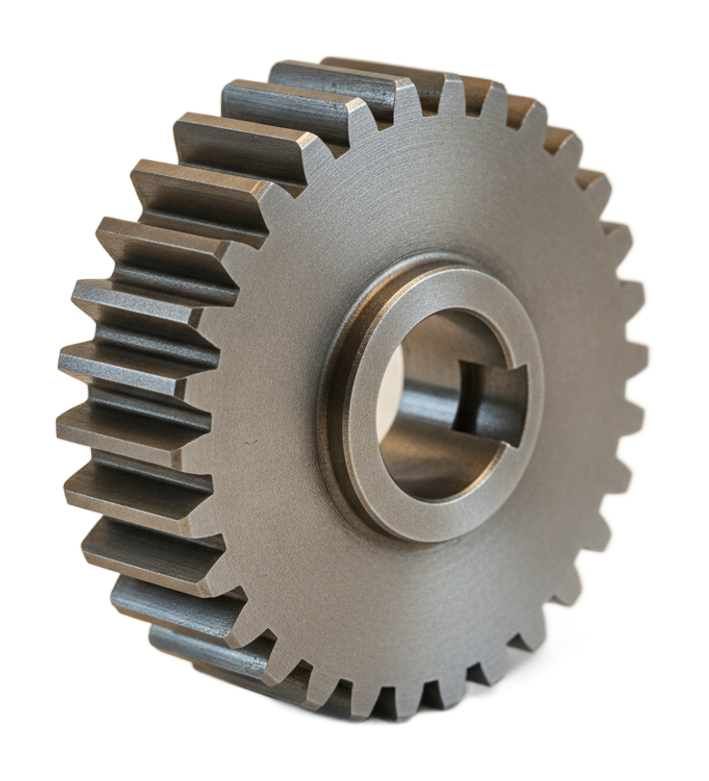

Wire EDM
Electrical discharge machining for intricate profiles, tight-tolerance slots, and hard materials. Ideal where conventional cutting tools cannot access the geometry.

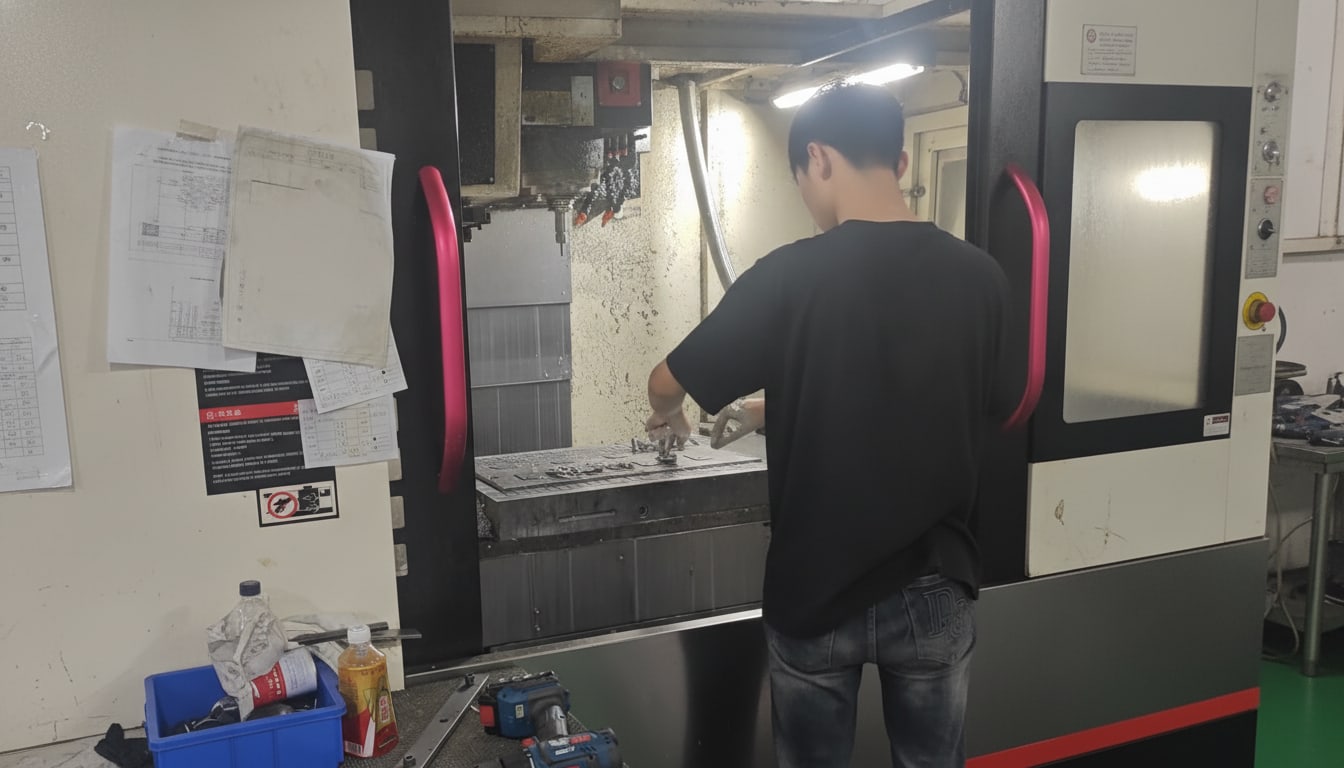

Cut from solid, then measured

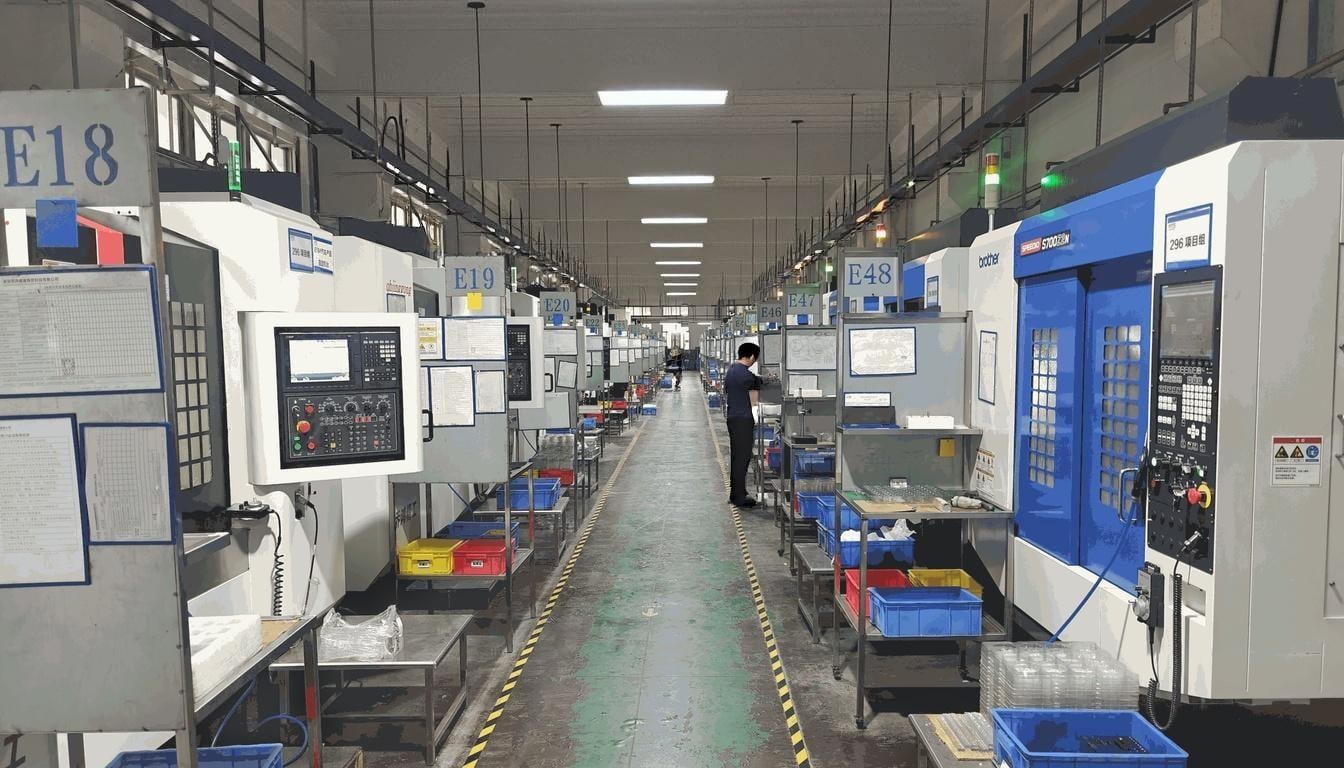

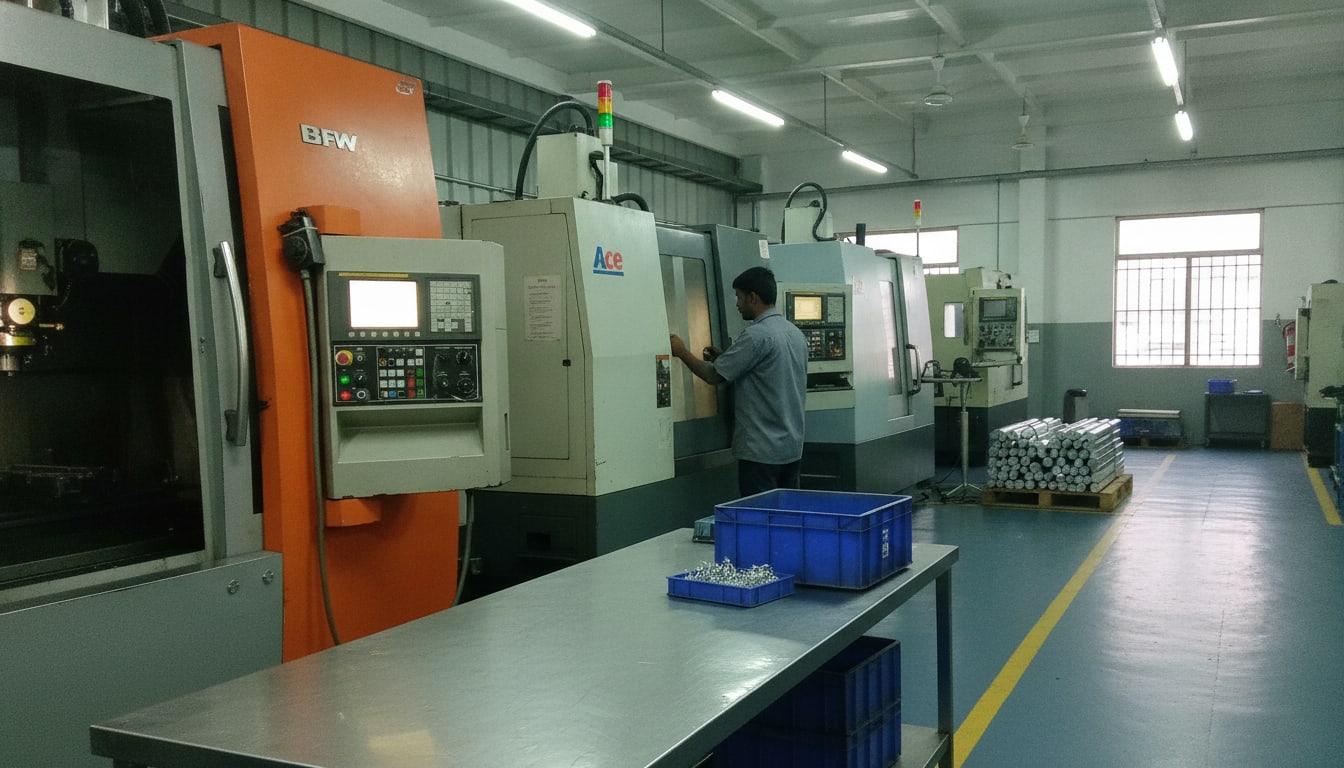

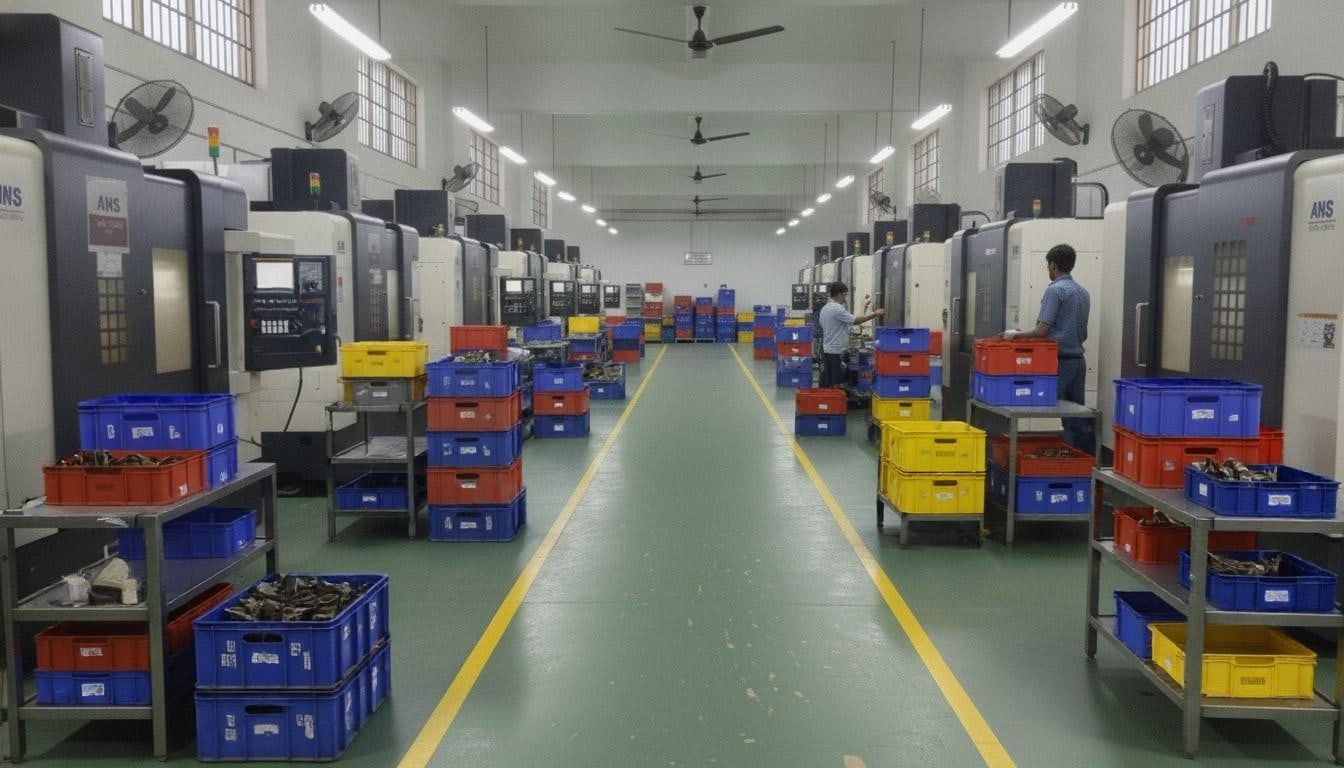

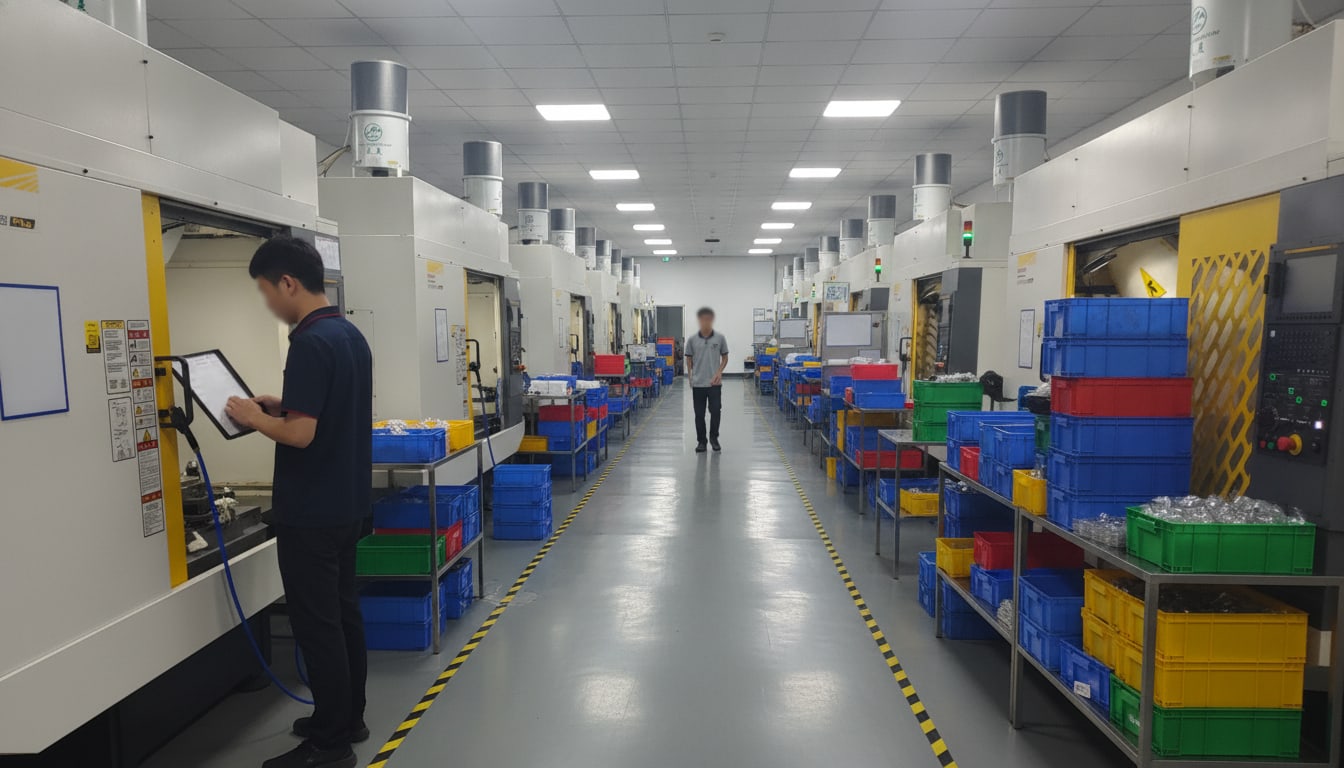

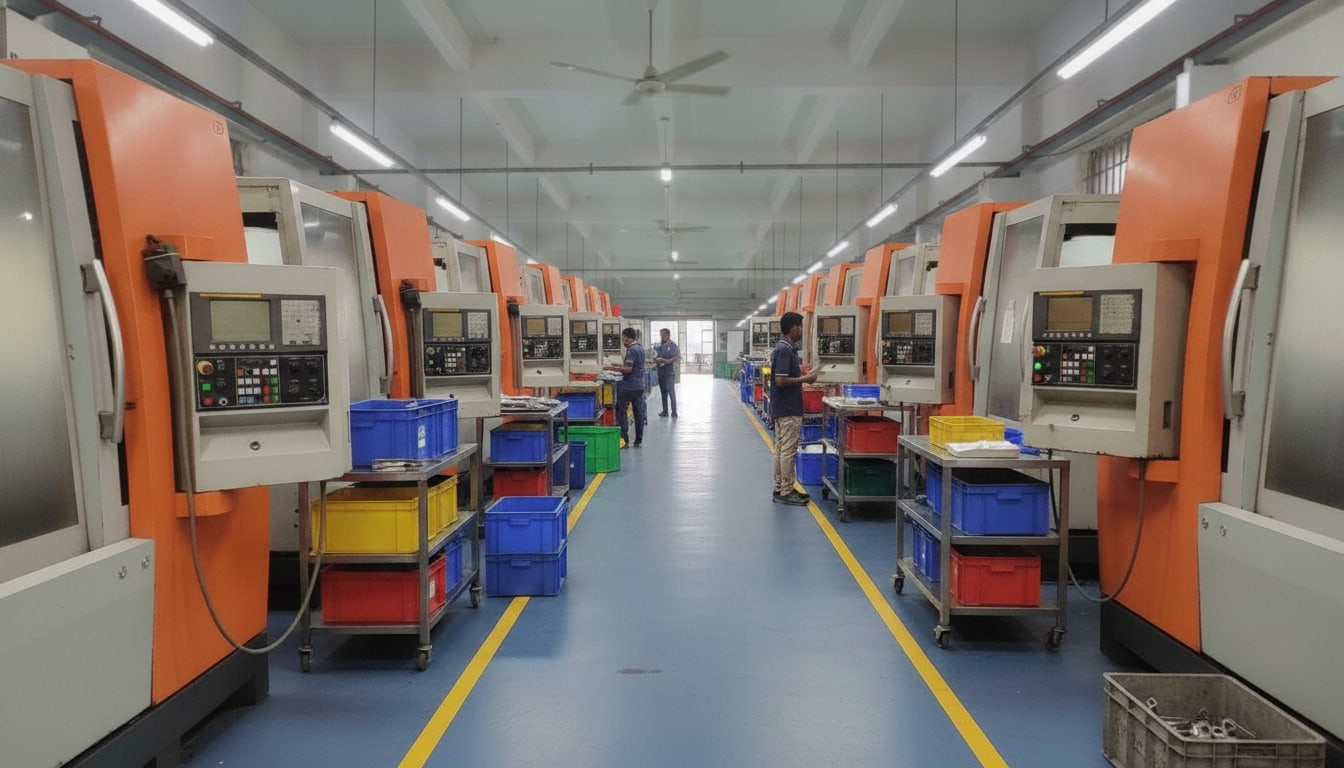

Your model is programmed and cut on Mazak, Brother, Doosan, BFW and Ace machining and turning centers covering 3-, 4- and 5-axis work, with Tsugami and Star Swiss-type automatics for small round parts, plus sink and wire EDM and surface grinders for what a cutter cannot reach. Parts are deburred and surface finished, then measured on ZEISS and HEXAGON CMMs, with roughness testers and a RoHS spectrograph in the same inspection room. Standard tolerance is 0.13 mm (0.005 in) across more than 50 materials.
Watch a part come off the machine
Thirty seconds on the floor: five axis machining centers, mill-turn, and the lathes that handle anything round.
Compatible Materials
Aluminum
- 6061-T6
- 7075-T6
- 2024-T4
- 5052-H32
- 6082-T6
Steel
- 1018 Mild Steel
- 4140 Alloy Steel
- A36 Structural
Stainless Steel
- 303 Free-machining
- 304
- 316 / 316L
- 17-4 PH
Titanium
- Grade 2 (CP)
- Grade 5 (Ti-6Al-4V)
Copper & Brass
- C110 Copper
- C360 Brass (Free-machining)
Engineering Plastics
- ABS
- Polycarbonate (PC)
- Nylon PA6 / PA66
- PEEK
- Delrin (POM)
- HDPE
- Ultem (PEI)
Available Surface Finishes
As-Machined
Standard Ra 1.6 µm (63 µin) surface left as-cut. Cost-effective for functional parts.
Bead Blast
Uniform matte finish that removes tool marks. Common pre-treatment before anodize.
Anodize Type II
12–25 µm (0.5–1.0 mil) decorative oxide layer. Improves corrosion resistance. Available in clear, black, and custom colors.
Hard Anodize Type III
25–50 µm (1.0–2.0 mil) for wear-critical surfaces. Increases surface hardness to ~70 HRC equivalent.
Powder Coat
Durable thermoplastic or thermoset coating in any RAL / Pantone color.
Electroplating
Nickel, chrome, or zinc plating for conductivity, corrosion protection, or aesthetics.
Black Oxide
Conversion coating that provides mild corrosion resistance and reduces light reflection.
Passivation
Removes free iron from stainless steel surfaces to maximize corrosion resistance.
Typical Applications
Technical Documents & Specifications
Design guides and references for this process, grounded in real manufacturing rules. More are on the way.
CNC Machining Design Guide
Wall thickness, radius, thread, and hole depth recommendations to optimize your design for CNC production.
Materials Reference Guide
Mechanical properties, machinability ratings, and application recommendations for all supported materials.
Tolerance & Fit Chart
Standard and achievable tolerances by feature type, material, and process. ISO and ASME reference included.
Surface Finish Reference
Ra, Rz, and Rq comparisons across finish options with visual and measurement standards.
Metrology & Inspection
The inspection workflow, measurement equipment, inspection levels, and the documentation you receive.
Industries we serve with CNC Machining
Teams we manufacture this process for. See representative parts and requirements by industry.
Ready to source your cnc machining parts?
Upload your files. We measure your model against per-process, per-material rules and send a DFM review before you commit to a quote.
